5DXFS06

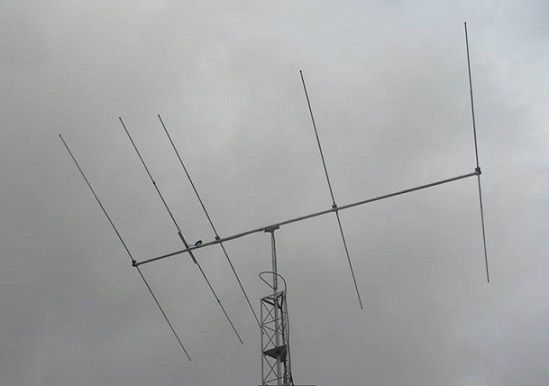

FULL SIZE DIRECTIONAL ANTENNA 5 ELEMENTS FOR 6M


Description:

The 5DXFS6 is a full size 5-element 6m directional antenna that covers the 50,000 to 54.000 khz VHF spectrum.
The power input limit is 2000w pep

5DXFS Family

Technical specifications
MODEL5DXFS6
BAND6 M
GAIN10.74 DBI
F/B23,48 DB
BANDWIDTH+ 500 KHZ (2:1)
MAX. INPUT PWR2000 W PEP
BOOM450 CM
> ELEMENT296 CM
TURNING RADIUS280 CM
MAST DIAMETER1 1/4" to 2"
WIND-LOAD AREA0,26 M²
WEIGHT6,1 KG
Downloads
5DXFS6- FE.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
