DXA1040V

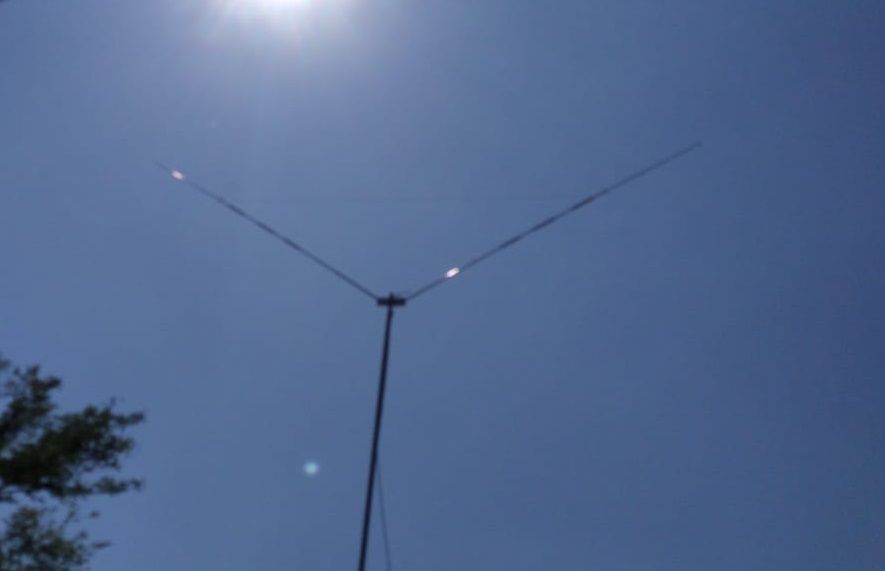

SHAPED V SHORTENED RIGID DIPOLE ANTENNA FOR 10 AND 40M
Description:
The DXA1040V is a bidirectional antenna, shaped V, that covers the HF spectrum between 28 - 29.8 MHz and 7 – 7.5 MHZ (tunable). It can be used with the full legal power of 100W continuously or 300W PEP.
Kit K6V for 6m band is compatible.
| Technical specifications | |
|---|---|
| MODEL | DXA1040V |
| BAND | 10 / 40M |
| GAIN | 2,4 DBI / 0 |
| 2:1 SWR BANDWIDTH | +500 khz (10M) +60 khz (40M) |
| MAX. INPUT PWR | 300 W PEP |
| > ELEMENT/MINIMUN SPACE | 800 CM / 700 CM |
| TURNING RADIUS | 350 CM |
| MAST DIAMETER | 1 1/4" TO 2" |
| WIND-LOAD AREA | 0,12 M² |
| WEIGHT | 3 KG |
| Downloads | |
|---|---|
| DXA1040V FE.pdf | Download |
Warranty
Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.
Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
