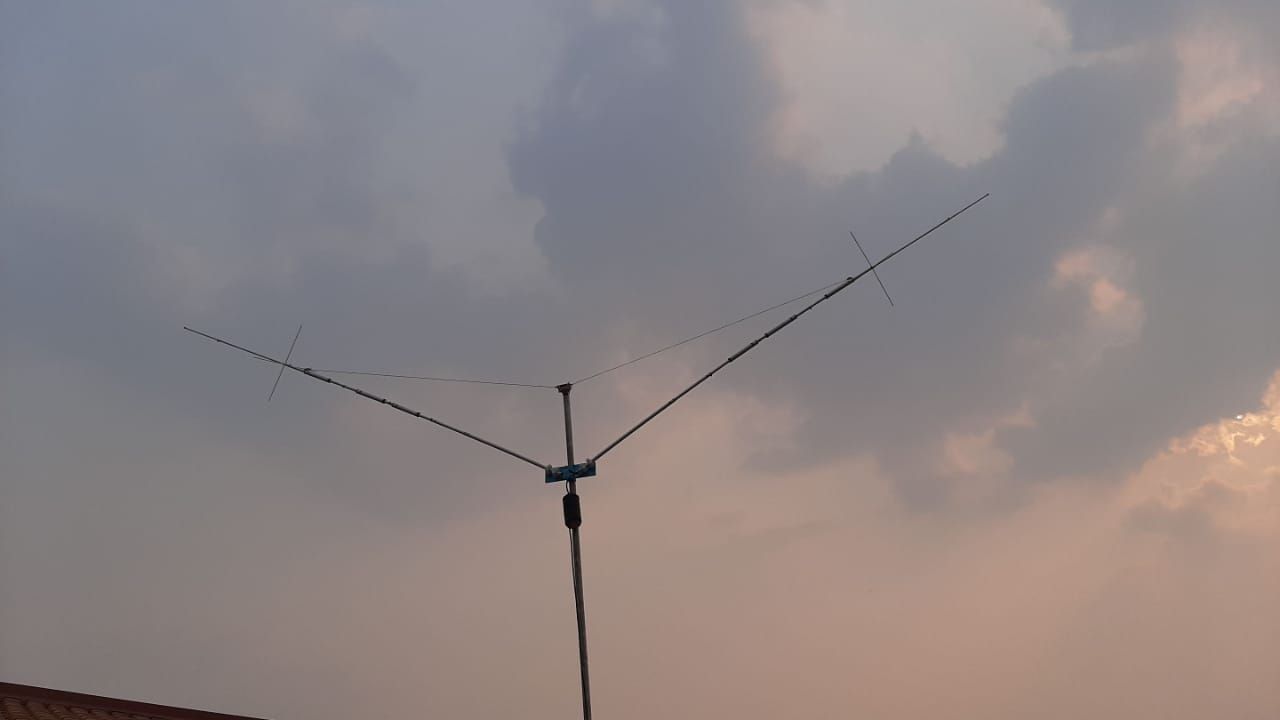

SHAPED V SHORTENED RIGID DIPOLE ANTENNA FOR 10/15/20M
The DXS1-40V is a bidirectional antenna, shaped V for 10/15/20/40m that covers the HF spectrum between
28 - 29.9 MHz (tunable).
21- 21.5 MHz (tunable).
14 - 14.5 MHz (tunable).
7 - 7.3 MHZ (tunable).
The power input limit is 1500w pep.
Kit K6V for 6m band is compatible.
DXS "V" Family
|2:1 SWR BANDWIDTH||+ 500khz (10/20M) +180khz (15m)+100 khz(40m)|
|MAX. INPUT PWR||1500W PEP|
|> ELEMENT/MINIMUN SPACE||1050cm / 925 cm|
|TURNING RADIUS||463 CM|
|MAST DIAMETER||1 1/4" TO 2"|
|WIND-LOAD AREA||0,25 M²|
Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.
Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
