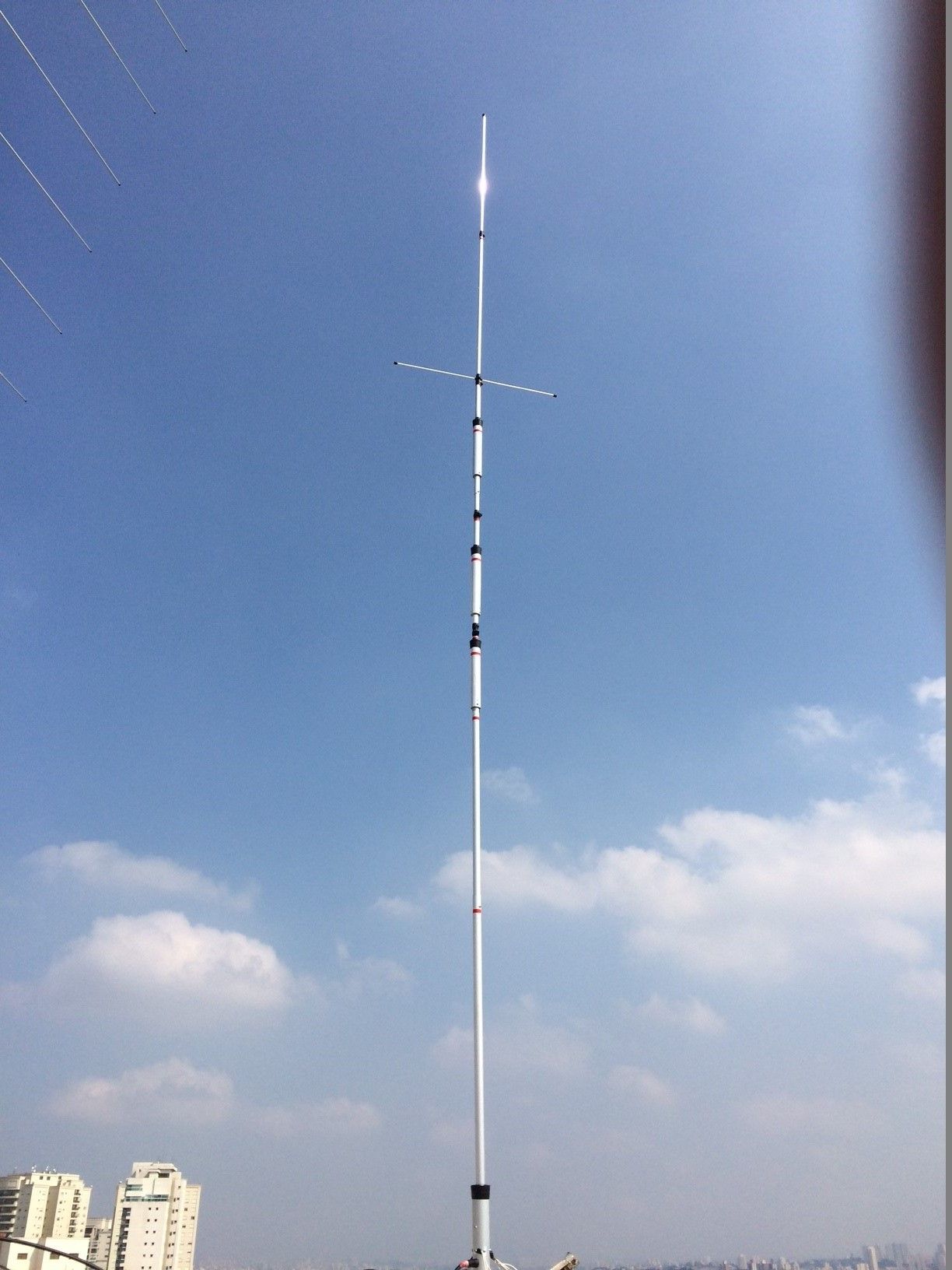

DXWV1-30

SHORTENED VERTICAL TRIBAND ANTENNA FOR 12/17/30M


Description:

The DXWV1-30 is a vertical antenna that covers the HF spectrum between 24.500 – 24.990 mhz (tunable), 18.000 – 18.200 mhz (tunable) and 10.000 – 10.200 mhz (tunable). It can be used with the full power of 1500 W PEP.

WIRE RADIALS  (NOT INCLUDE)

Technical specifications
MODELDXWV1-30
BAND12/17/30 M
GAIN2,4 DBI
2:1 SWR BANDWIDTH+300 khz
MAX. IPUT PWR1500W PEP
> ELEMENT500CM
RADIALSWIRE (NOT INCLUDE) SEE INSTRUCTIONS
MAST DIAMETER<38MM
WIND-LOAD AREA0,08 M²
WEIGTH2,95
Downloads
DXWV1-30 FE.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
