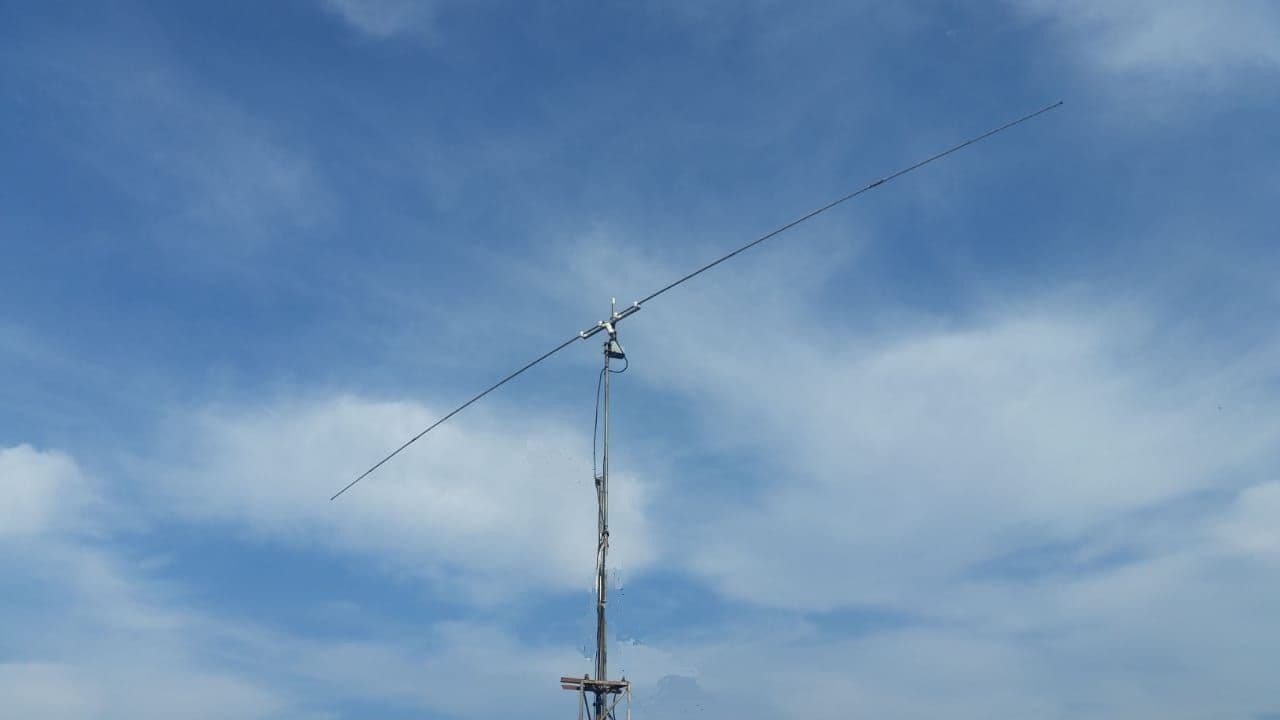

DXA1230

ROTATING SHORT DIPOLE ANTENNA FOR 12M AND 30M


Description:

The DXA1230 is a bidirectional antenna that covers the HF spectrum between 24.8 - 25 MHz and 10 – 10.3 MHZ. It can be used with the full legal power of 100W continuously or 300W PEP.

Kit K6 for 6m band is compatible.

Technical specifications
MODELDXA1230
BAND12 and 30 m
GAIN2 DBI
2:1 SWR BANDWIDTH+500 khz (12m) +100 khz (30m)
MAX. INPUT PWR300 W PEP
> ELEMENT1010 cm
TURNING RADIUS505 cm
MAST DIAMETER<50mm
WIND-LOAD AREA0,23 m2
WEIGTH4,1 Kg
Downloads
DXA1230 ENG.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
