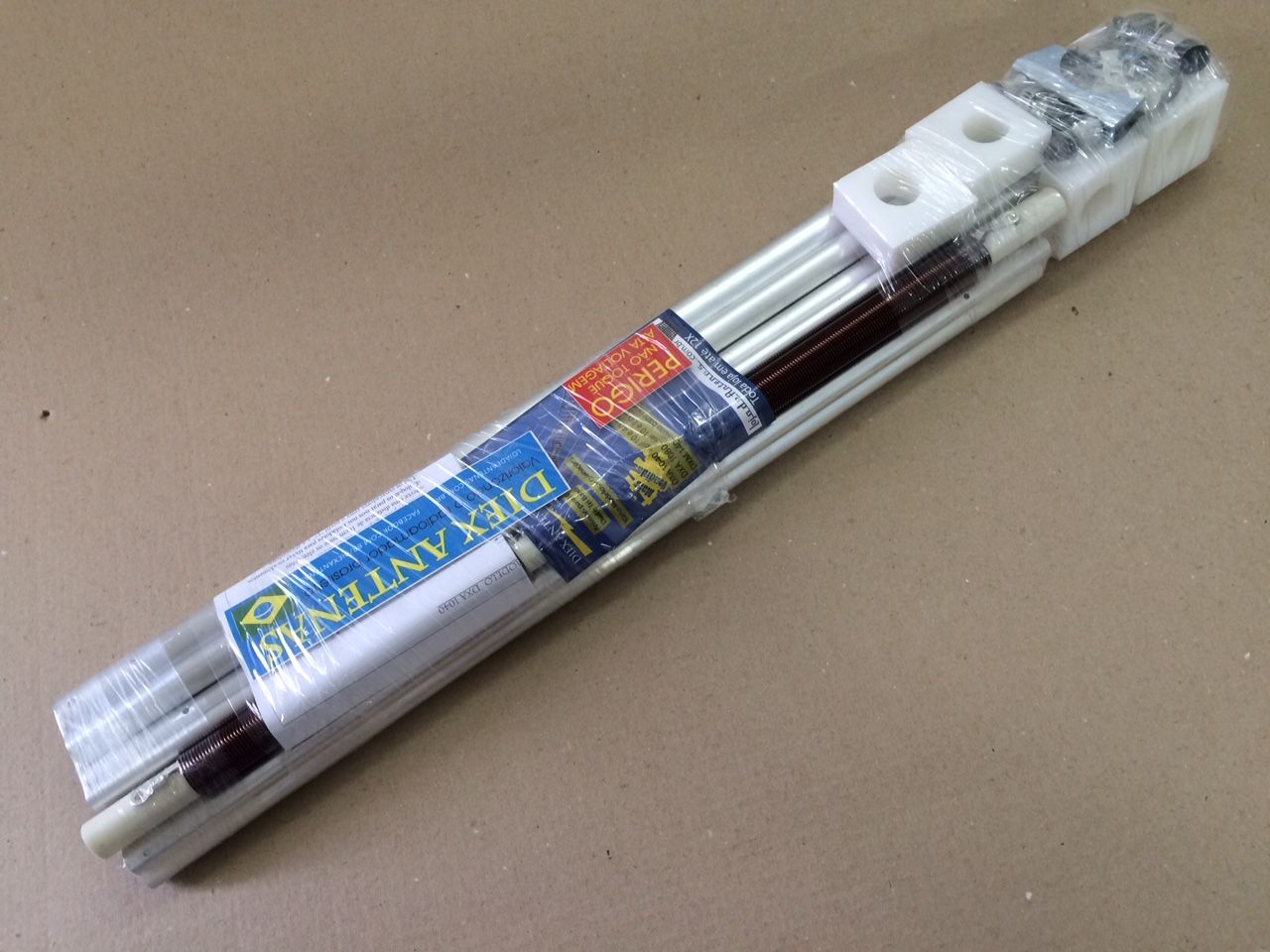

DXA1740 2.jpeg
fix isolador no L.jpg
DISTANCIA ELEMENTOS CENTRAIS.JPG
instalacao do grampo v.jpeg
fixacao no mastro COSTAS.jpeg
FIXACAO NO MASTRO FRENTE.JPG

DXA1740

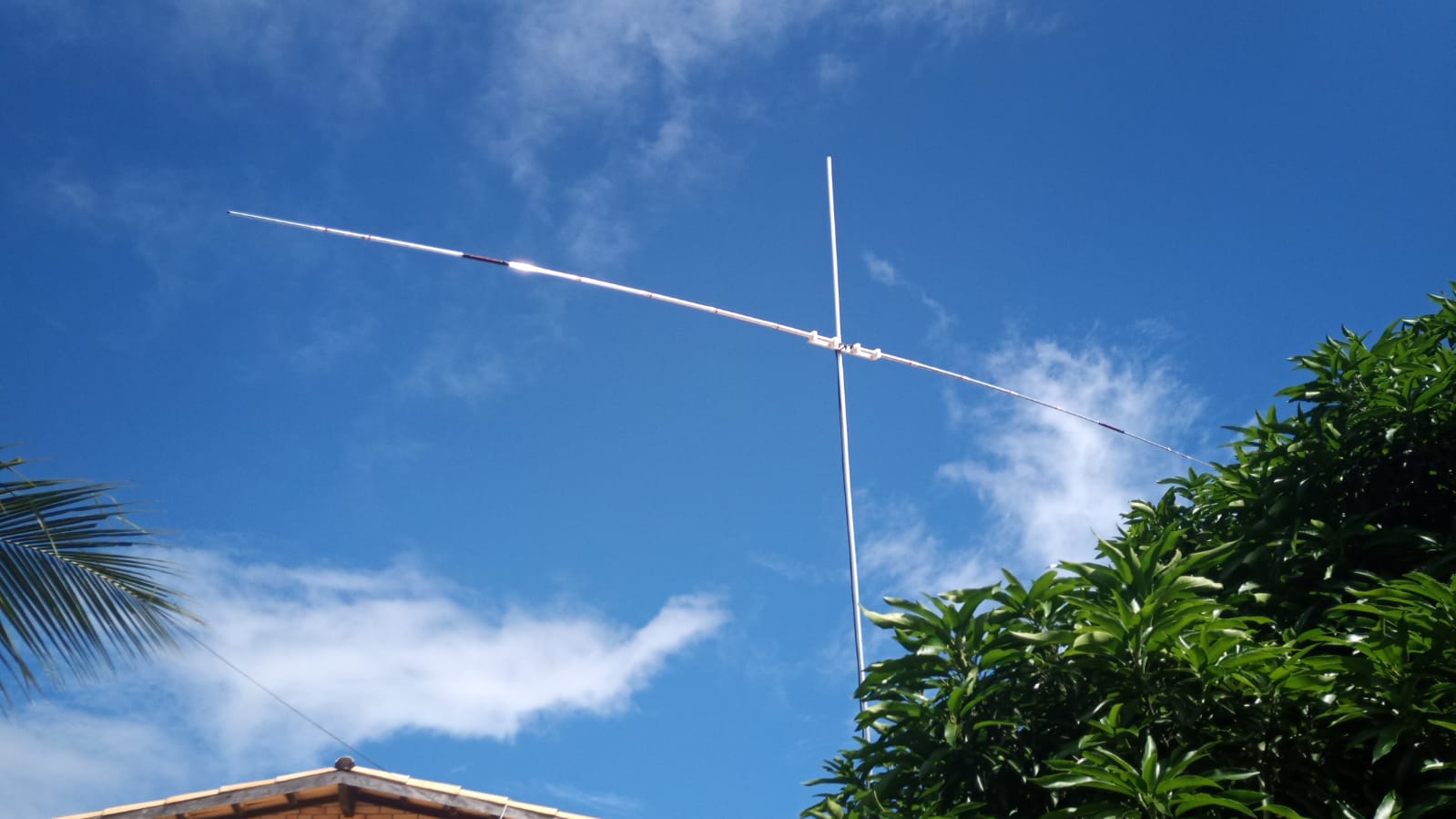

ROTATING SHORTENED RIGID DIPOLE ANTENNA FOR 17 AND 40M


Description:

The DXA1740 is a bidirectional antenna that covers the HF spectrum between18 - 18.2 MHz and 7 – 7.5 MHZ (tunable). It can be used with the full legal power of 100W continuously or 300W PEP.

Kit K6 for 6m band is compatible.

Technical specifications
MODELDXA1740
BAND17 and 40M
GAIN2 DBI / 0 DBI
2:1 SWR BANDWIDTH+ 500khz (17m)/+70khz (40m)
MAX. INPUT PWR300 W PEP
> ELEMENT1110 cm
TURNING RADIUS555 cm
MAST DIAMETER< 50mm
WIND-LOAD AREA0,195 m2
WEIGHT3.95 Kg
Downloads
DXA1740 ENG.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
