DXFS10V

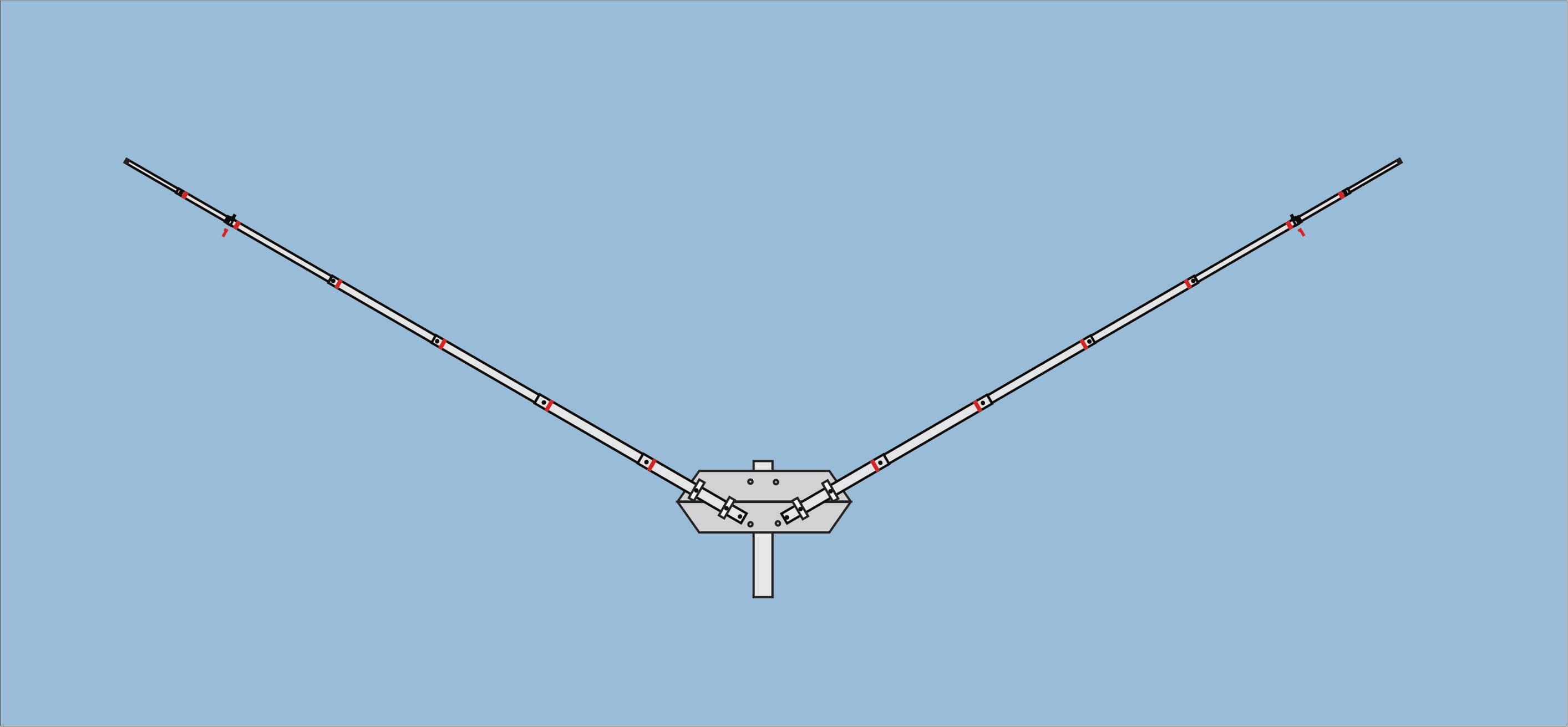

SHAPED V SHORTENED RIGID DIPOLE ANTENNA FOR 10M


Description:

The DXFS10V is a bidirectional antenna, shaped V for 10m that covers the HF spectrum between 28 - 30 MHz  (tunable). The power input limit is 2000w pep.

Technical specifications
DXFS10V10M
BAND10M
GAIN2,4 DBI
2:1 SWR BANDWIDTH+500 khz
MAX. INPUT PWR2000W PEP
> ELEMENT/MINIMUN SPACE510CM / 449CM
TURNING RADIUS225CM
MAST DIAMETER1 1/4" TO 2"
WIND-LOAD AREA0,09M²
WEIGTH3,030KG
Downloads
DXFS10V FE.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
