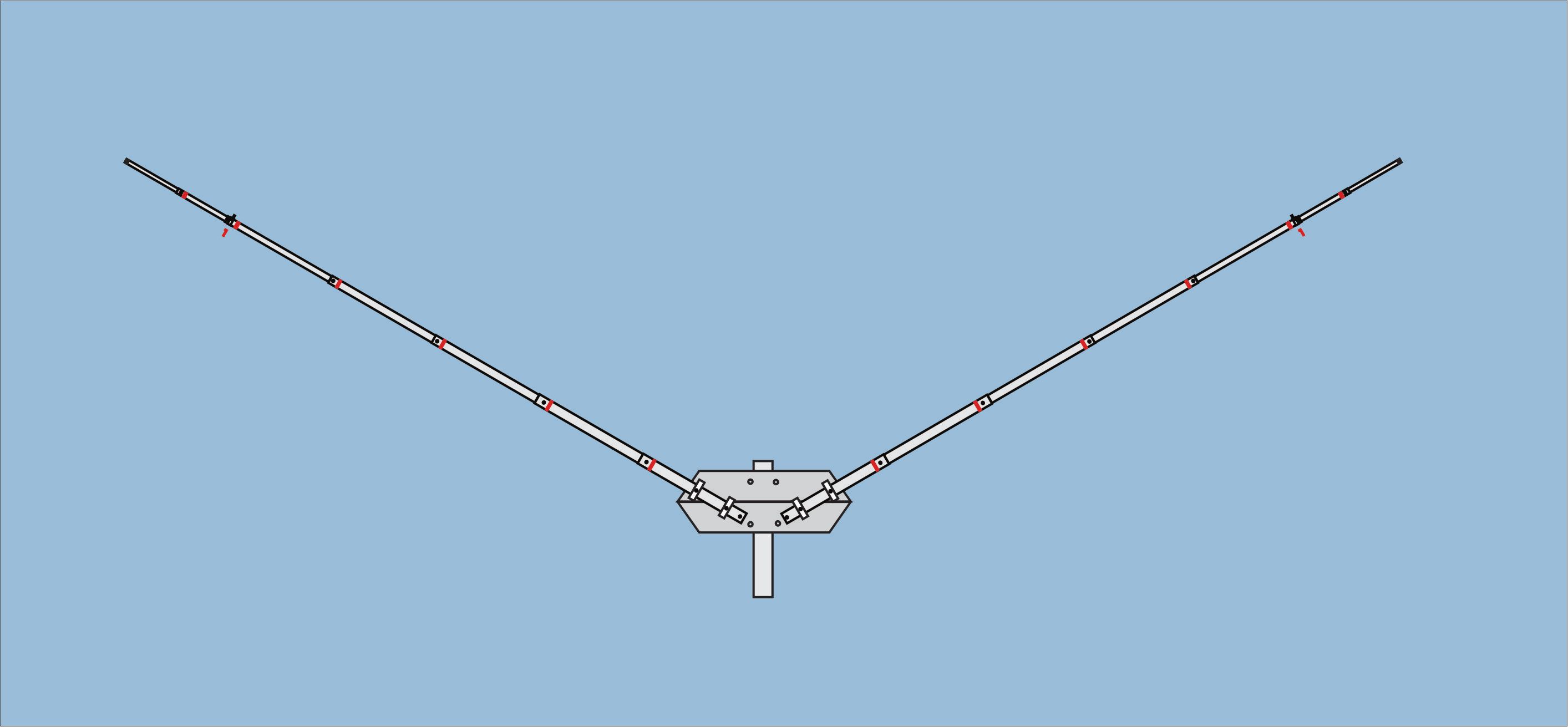

dxfs grafico.jpg

DXFS17V

SHAPED V SHORTENED RIGID DIPOLE ANTENNA FOR 17M


Description:

The DXFS17V is a bidirectional antenna, shaped V for 17m that covers the HF spectrum between 18 - 18,5 MHz  (tunable). The power input limit is 2000w pep.

Technical specifications
MODELDXFS17V
BAND17M
GAIN2,4 DBI
2:1 SWR BANDWIDTH+500 khz
MAX. INPUT PWR2000W PEP
> ELEMENT/MINIMUN SPACE820 CM / 721 CM
TURNING RADIUS360 CM
MAST DIAMETER1 1/4" TO 2"
WIND-LOAD AREA0,10M²
WEIGTH3,2 KG
Downloads
DXFS17V FE.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
