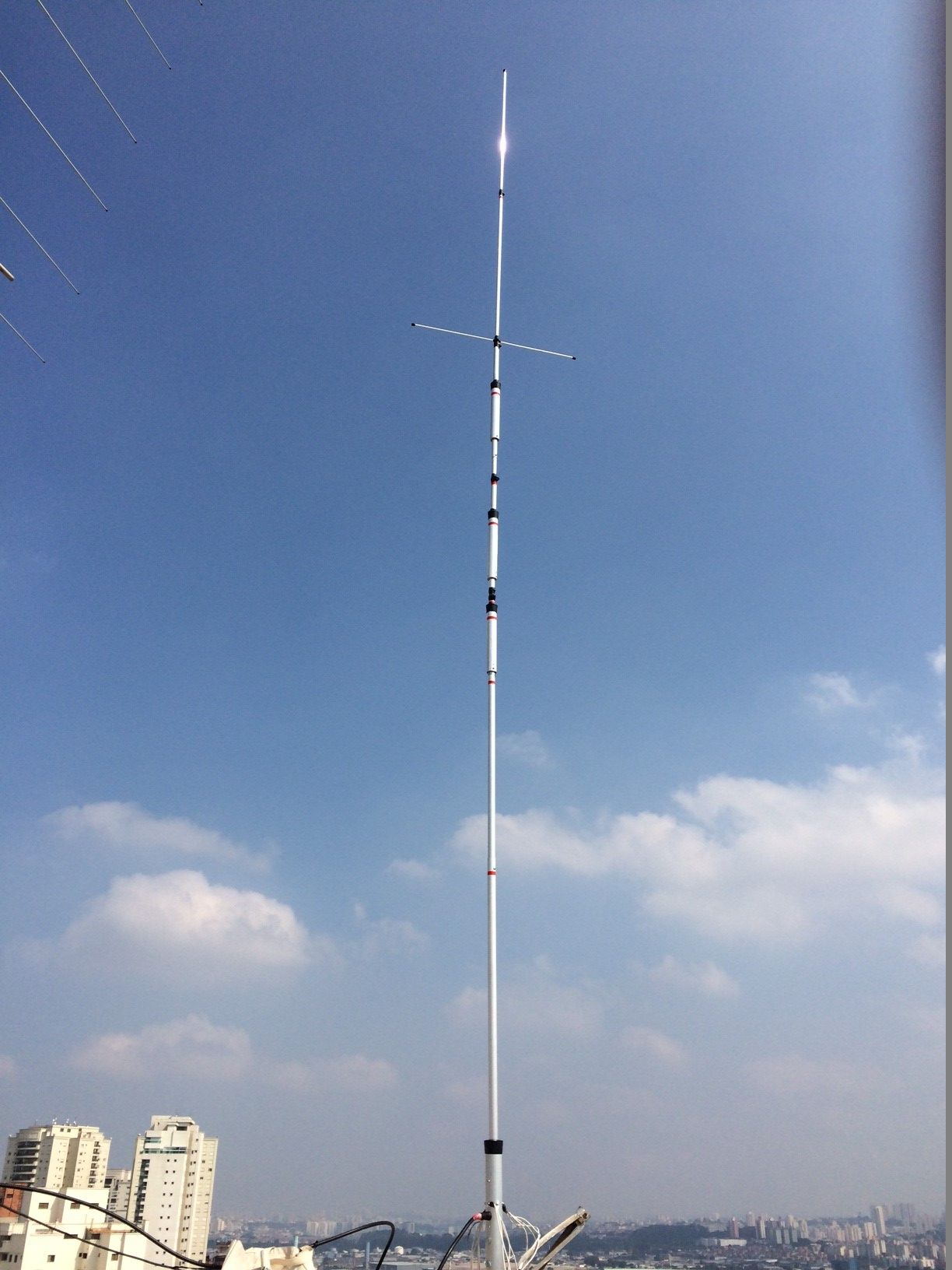

DXSV1-40

SHORTENED VERTICAL QUADRIBAND ANTENNA FOR 10/15/20/40 M


Description:

The DXSV1-40 is a vertical antenna that covers the HF spectrum between 28.000 – 29.990 mhz (tunable), 21.000 – 21.500 mhz (tunable), 14.000 – 14.500 mhz (tunable) and 7.000 – 7.500 mhz (tunable). It can be used with the full power of 1500 W PEP.

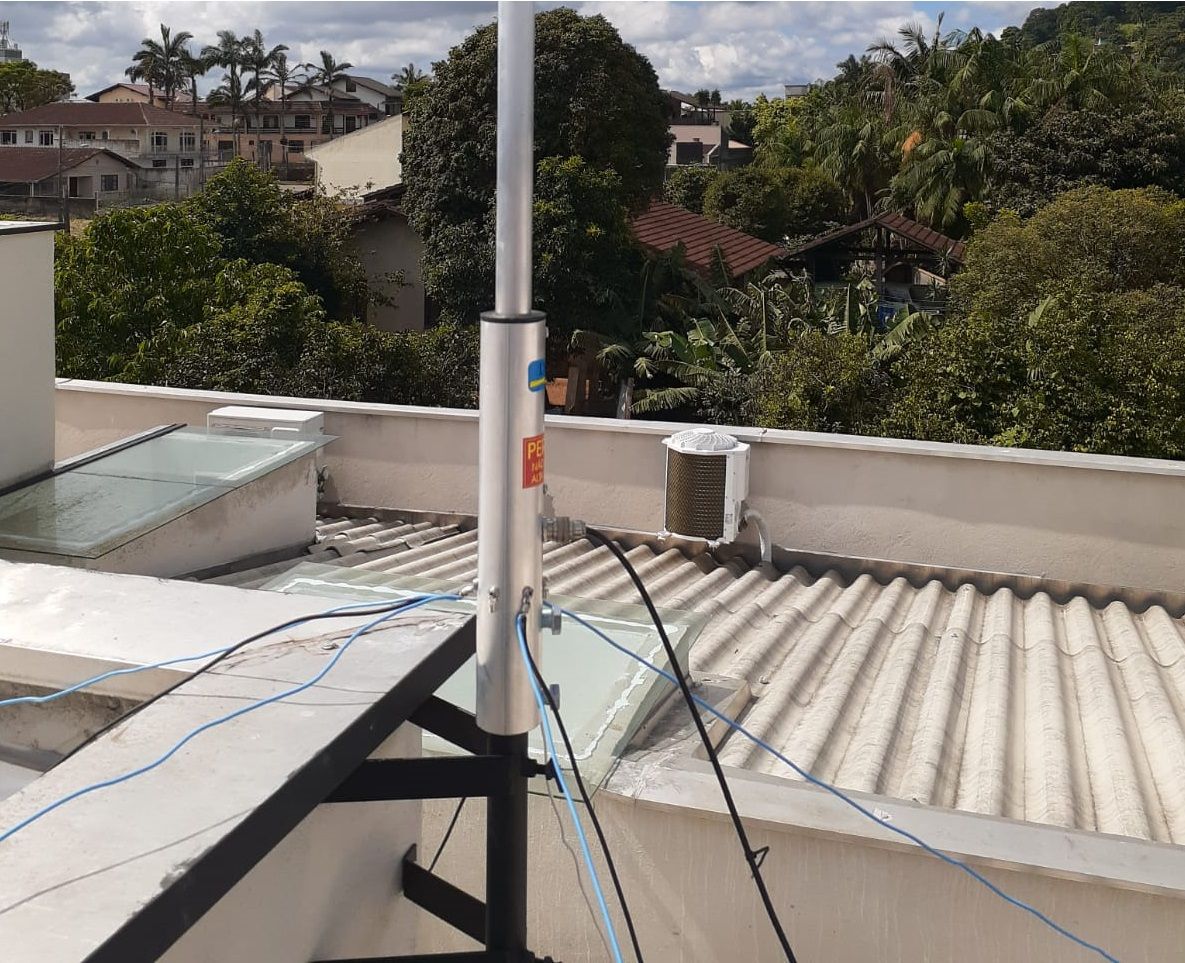

WIRE RADIALS  (NOT INCLUDE)

Technical specifications
MODELDXSV1-40
BAND10/15/20/40M
GAIN2,4 DBI
2:1 SWR BANDWIDTH+500khz (10/20M) +180 khz (15/40M)
MAX. INPUT PWR1500 W PEP
> ELEMENT500 CM
RADIALS(NOT INCLUDE) SEE INSTRUCTIONS
MAST DIAMETER< 38 MM
WIND-LOAD AREA0,11 m²
WEIGHT3,5 kg
Downloads
DXSV1-40 fe.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
