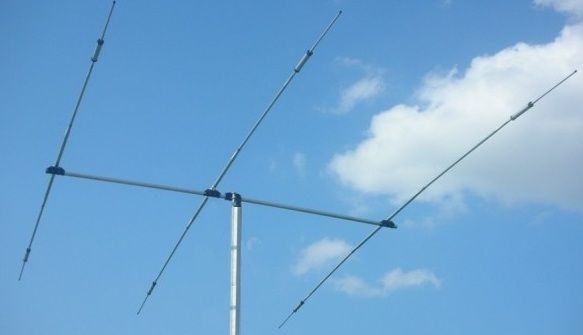

DUAL BAND DIRECTIONAL ANTENNA 3 ELEMENTS 12/17M
The DXW3 is a directional antenna with 3 elements at 12/17m covering the HF spectrum in the bands of:
- 12m from 24,500 to 24,990 khz tunable.
- 17m from 18,000 to 18,500 Khz tunable.
-With the addition of the K6 kit it can go out in 6m.
The power input limit is 1500w pep.
|2:1 SWR BANDWIDTH||+500 KHZ|
|MAX. POWER INPUT||1500 W PEP|
|> ELEMENT||7,06 M|
|TURNING RADIUS||4,80 M|
|MAST||1 1/4" TO 2"|
|WIND-LOAD AREA||0,52 M²|
Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.
Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
