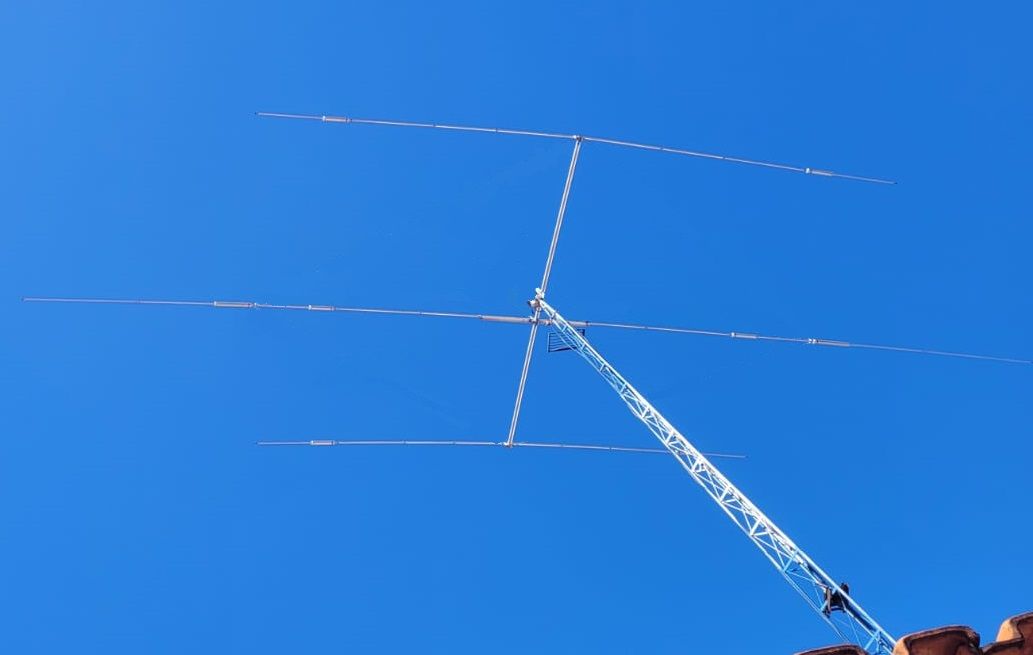

DXW3-30
TRIBAND DIRECTIONAL ANTENNA 3 ELEMENTS 12/17/30M
Description:
The DXW3-30 is a directional antenna with 3 elements at 12/17 and 1 element for 30m, covering the HF spectrum in the bands of:
- 12m from 24,500 to 24,990 khz tunable.
- 17m from 18,000 to 18,500 khz tunable.
- 30m from 10,000 to 10,500 Khz tunable.
-With the addition of the K6 kit it can go out in 6m.
The power input limit is 1500w pep.
| Technical specifications | |
|---|---|
| MODEL | DXW3-30 |
| BAND | 12/17/30 M |
| GAIN | 8 DBI 12/17m / 2,4 DBI 30m |
| F/B | 25 DB / 0 |
| 2:1 SRW BANDWIDTH | +500/+150/+80KHZ 12/17/30M |
| MAX INPUT POWER | 1500 W PEP |
| BOOM | 4,40M |
| > ELEMENT | 10,60m |
| TURNING RADIUS | 5,90m |
| MAST DIAMETER | 1 1/4" to 2" |
| WIND-LOAD AREA | 0,55 M² |
| WEIGHT | 16 KG |
| Downloads | |
|---|---|
| DXW3-30 fe.pdf | Download |
Warranty
Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.
Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
