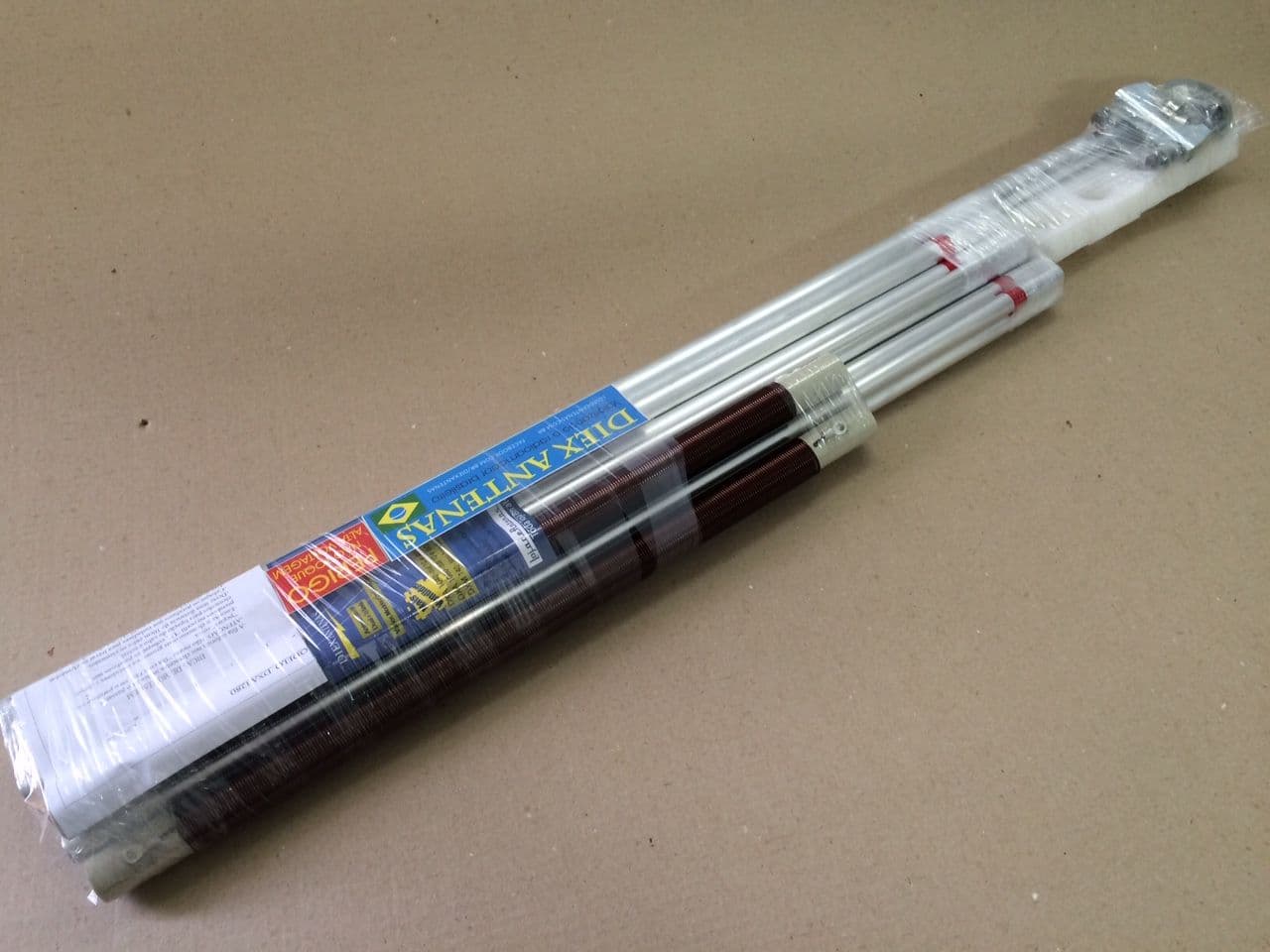

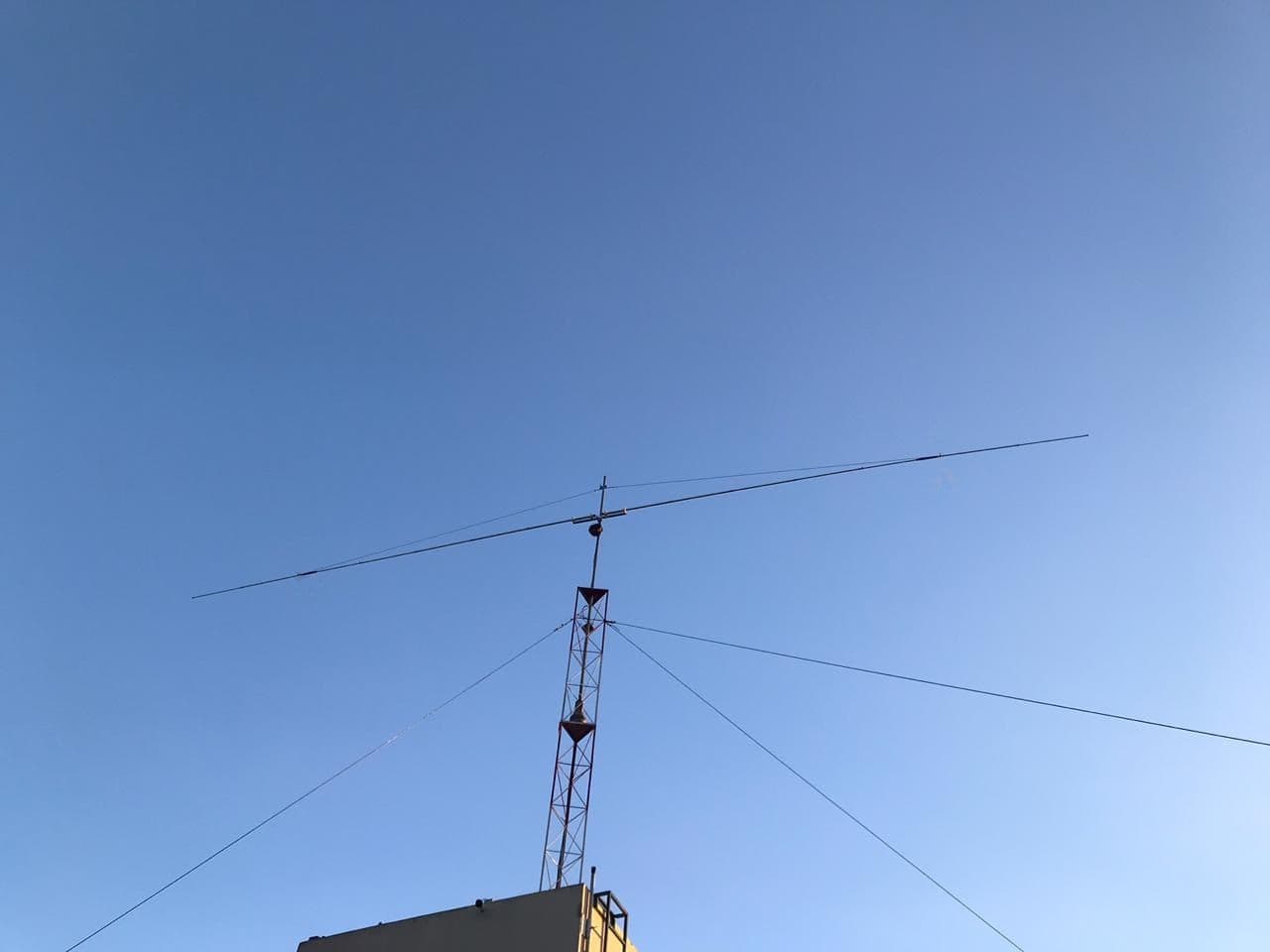

SHORTENED RIGID DIPOLE ANTENNA FOR 15 AND 80M
The DXA1580 is a bidirectional antenna that covers the HF spectrum between 21.0 - 21.5 MHz and 3.5 – 4.5 MHZ (tunable). It can be used with the full legal power of 100W continuously or 300W PEP.
Kit K6 for 6m band is compatible.
|BAND||15 AND 80M|
|GAIN||2 DBI / 0 DBI|
|2;1 SWR BANDWIDTH||+500 KHZ (15M) / +20 KHZ (80M)|
|MAX. IMPUT PWR||300 W PEP|
|TURNING RADIUS||590 CM|
|MAST DIAMETER||< 50MM|
|WIND-LOAD AREA||023 M²|
Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.
Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
