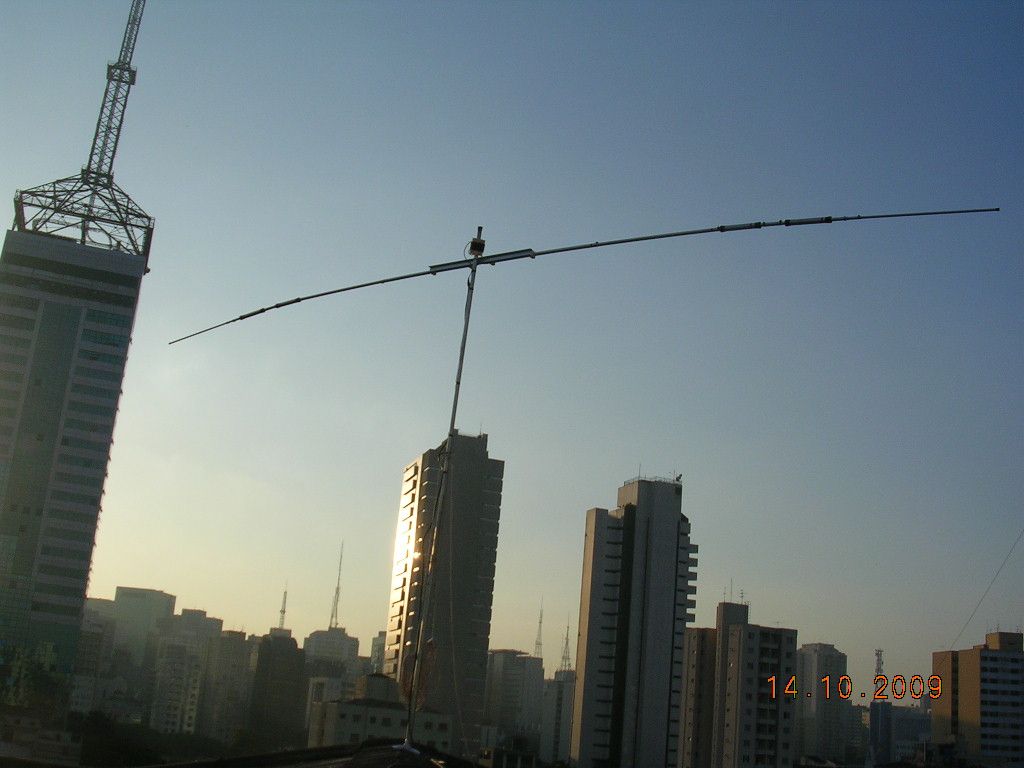

DXS1

ROTATING SHORT RIGID DIPOLE TRIBAND ANTENNA TO 10/15/20 M


Description:

The DXS1 is a dipole triband antenna that covers the HF spectrum between 28.000 – 29.990 mhz (tunable), 21.000 – 21.500 mhz (tunable) and 14.000 – 14.500 mhz (tunable). It can be used with the full power of 1500 W PEP.

Kit K6 for 6m band is compatible.

Technical specifications
MODELDXS1
BAND10/15/20m
GAIN2,4 DBI
2:1 SWR BANDWIDTH+500 khz (10/20m) +180 khz (15m)
MAX. INPUT PWR1500w PEP
> ELEMENT7,80
MAST DIAMETER1 1/4" TO 2"
TURNING RADIUS3,90M
WIND-LOAD AREA0,20M²
WEIGHT4,2 KG
Downloads
DXS1 FE.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
