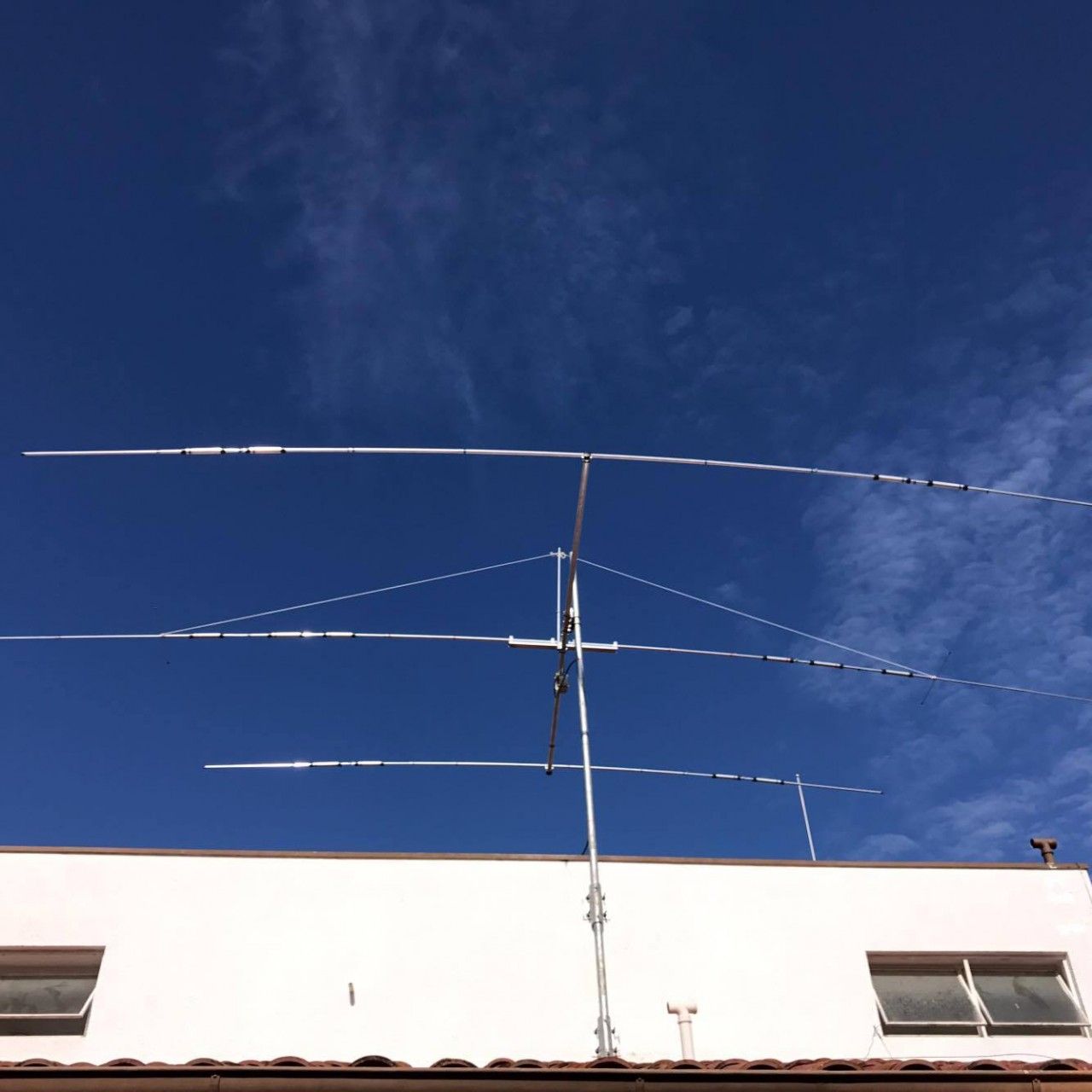

DXS3-40

DIRECTIONAL ANTENNA 3 ELEMENTS 10/15/20M WITH KIT 40M


Description:

The DXS3-40 is a directional antenna with 3 elements at 10/15/20m and 1 element at 40m, covering the HF spectrum in the bands of:
- 10m from 28,000 to 29,990 khz tunable.
- 15m from 21,000 to 21,500 khz tunable.
- 20m from 14,000 to 14,500 khz tunable.
- 40m from   7,000 to   7,300 khz tunable.
-With the addition of the K6 kit it can go out in 6m.
The power input limit is 1500w pep

Kit K6 for 6m band is compatible.

Technical specifications
ModelDXS3-40
Band10/15/20/40 m
Gain8 dBi (10/15/20M) / 2,4dbi (40M)
F/C25 dB / 0
Bandwidth+ 500 (2:1) / +90 IN 40M
Maximum Potency2.000 W PEP
Boom440 cm
> Element1050 cm
Turning radius580 cm
Mast diameter1.¼” A 2”
Wind-load area0,58 m2
Weight19 Kg
Downloads
DXS3-40 fe.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
