DXS16

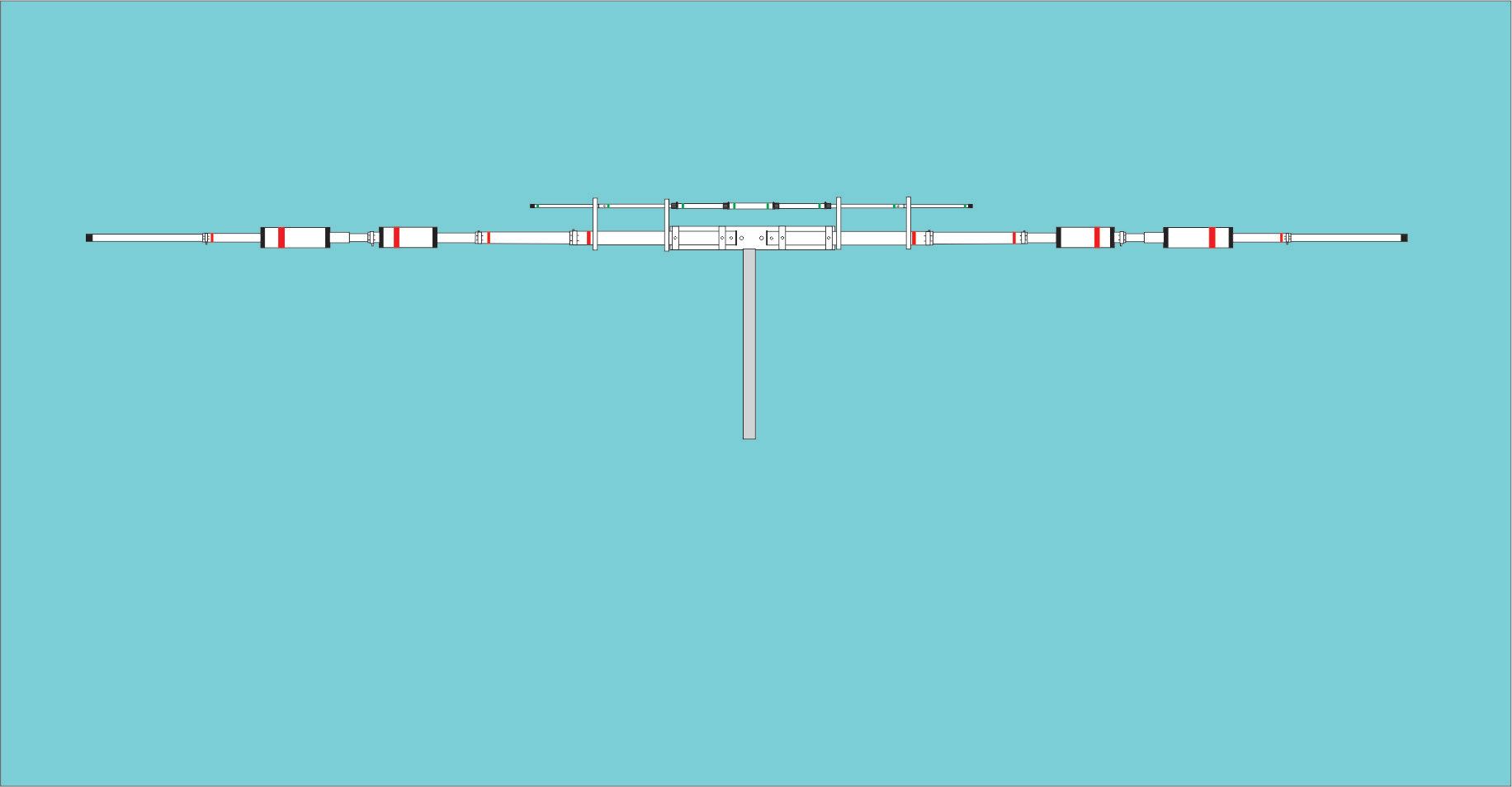

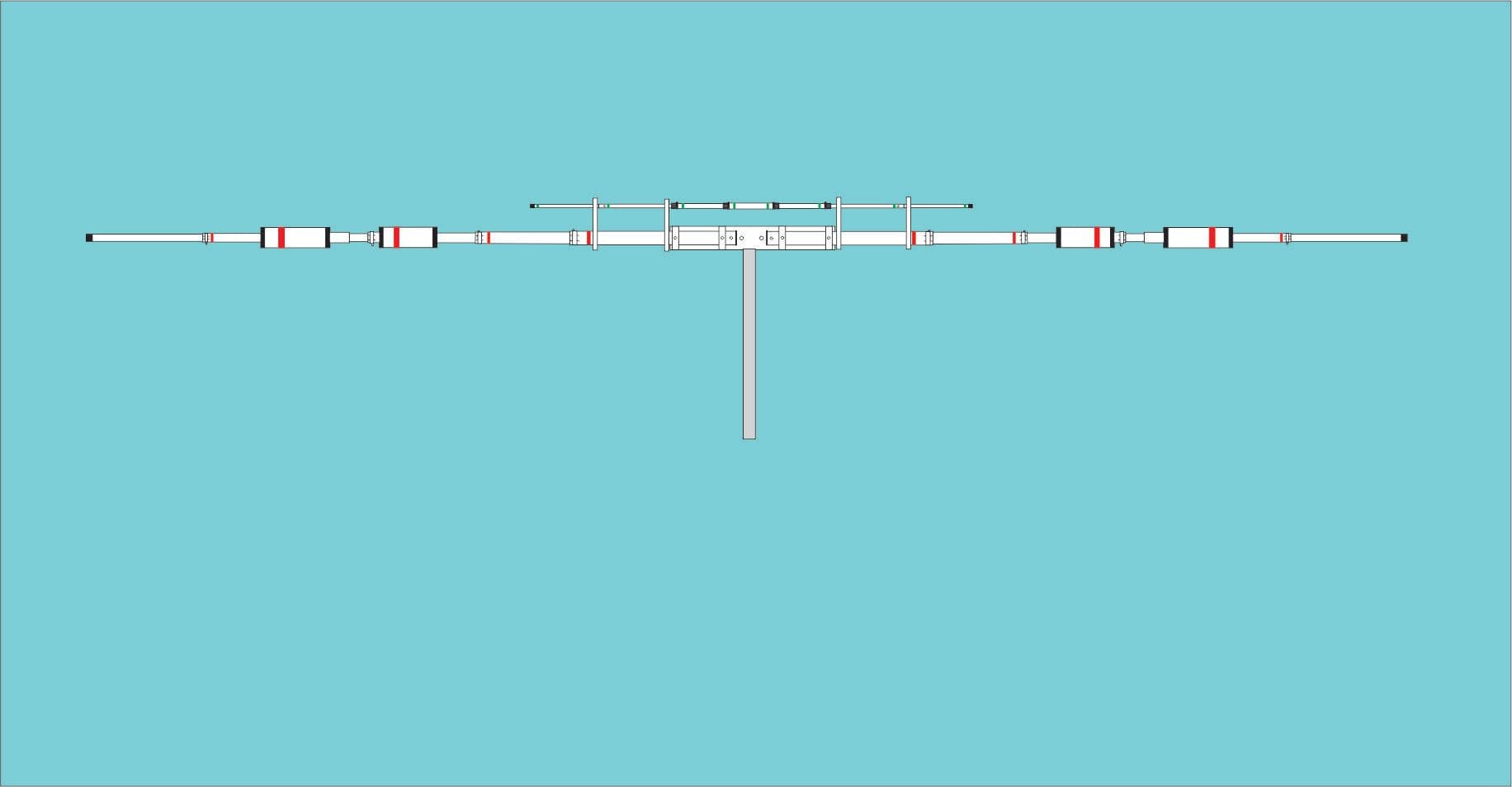

SHORT RIGID DIPOLE QUADRIBAND ANTENNA TO 6/10/15/20 M


Description:

The DXS16 is a dipole quadriband antenna that covers the HF spectrum between:

50,000 - 56,000 mhz (tunable),

28.000 – 29.990 mhz (tunable),

21.000 – 21.500 mhz (tunable) and

14.000 – 14.500 mhz (tunable).

It can be used with the full power of 1500 W PEP.

Technical specifications
MODELDXS16
BAND6/10/15/20M
GAIN2,4 DBi
2:1 SWR BANDWIDTH+500KHZ (6/10/20M) +180KHZ (15M)
MAX. INPUT PWR1.500W PEP
> ELEMENT7,80M
TURNING RADIUS3,90M
MAST DIAMETER1 1/4" TO 2"
WIND-LOAD0,25M²
WEIGHT4,4 KG
Downloads
DXS16 FE.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
